Masking Caps

Silicone masking caps, products resistant to 260°C continuous temperature for paint shops and coating facilities.

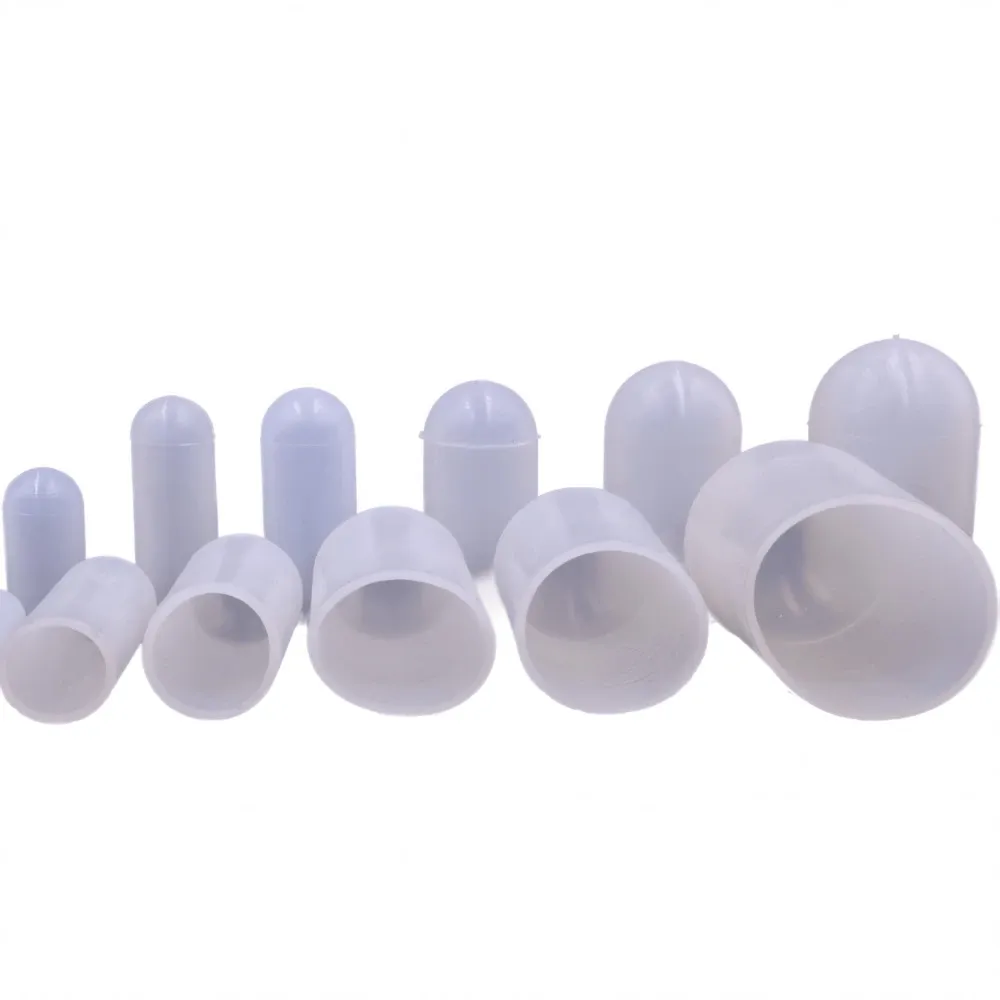

Masking caps are flexible and multi-use masking products made from silicone compounds prepared with our special formulas for paint shops and coating facilities. They are masking products that are resistant to 260°C continuous, 315°C temporary temperature, acid and chemicals for a long time and can be used repeatedly.

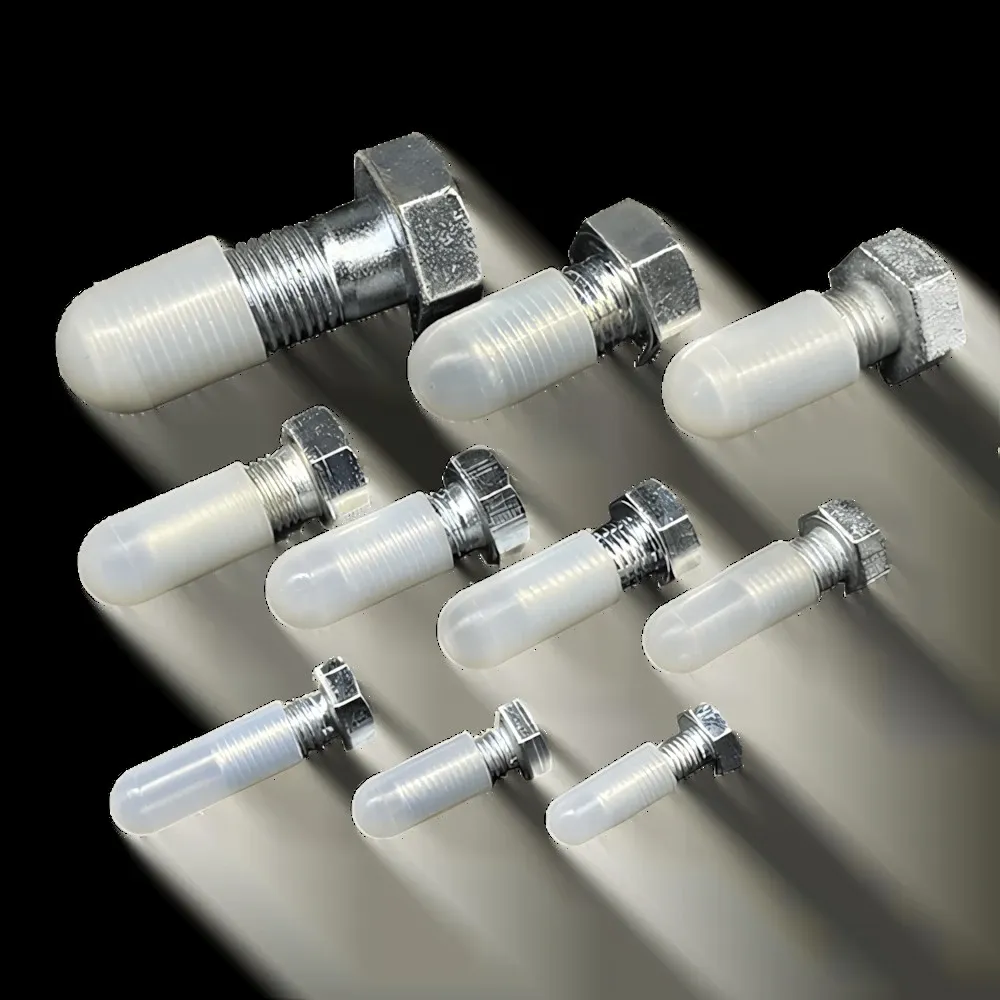

It provides masking of unwanted areas on bolts, shafts, and similar parts to be painted or coated. Masking caps help to keep the work clean and high quality by preventing paint or coating material from spreading to unwanted surfaces on the part to be processed.

As we know, when metals are processed from part to whole, some areas need to be protected. Moving towards the whole, there are many connection elements on the parts such as various blades, pins, shafts, countersinks, screws, nuts, metal dowels, flanges. Masking caps protect unwanted surfaces from paint on painted and coated parts.

Our Masking Caps

In all electrolysis coatings made using hot dip or hot spray method with powder coating, wet paint, cataphoresis coating applications where protection is desired
Can be used on all bolt – shaft – pipe mouths and threads where paint and coating are not desired

Masking Cap Usage Advantages

Provides fast and practical masking capability
Does not disrupt the process flow in serial production
Multiple different areas can be masked with a single product
Has a very long service life due to its flexible and cleanable nature
Reduces per-part masking cost by being used repeatedly thanks to its long life
Does not require re-cleaning at masked areas
Does not require re-threading and cleaning costs on paint-protected threads
Saves time and cost. Reduces correction or cleaning operations by ensuring work is done properly and cleanly
Offers fast and accurate masking in all required areas with our ready molds in 4 different models and approximately 130 different sizes

Masking Caps Technical Specifications

Property	Value
Product	Caps
Shore A	50-60
Tensile Strength	7 MPa
Elongation at Break (UA)E	125.00%
260°C Resistance	70 Hours
220°C Resistance	90 Hours
180°C Resistance	105 Hours
130°C Resistance	130 Hours
